Model :DX300LCA-7M
Engine :DEVELON DE08TIS
Nominal flywheel power :202HP/1,900 rpm(KS-R1004)
Operating weight :31,800 KG
Add to inquiry
Technical Specification
Category Item Unit


    Engine         Model
    		 DEVELON DE08TIS

    		     Nominal flywheel power         HP/rpm      202HP/1,900 rpm(KS-R1004)



    		  185HP/1,800 rpm(KS-R1004)

    		     Max torque         kgf.m/rpm     902 N.m / 1,300 rpm
              Piston displacement         cc     8,071

    Hydraulic System

     Main pumps maxflow         L/min     2 x 262
    Drive         Swing speed         rpm     9.6

    		     Travel speed(fast/slow)         km/hr     5.3 / 3.0

    		     Maximum grade         ˚     35˚

    		     Maximum traction force         ton     28
    Refill Capacities         Fuel tank         L     500
     Oil tank L 280

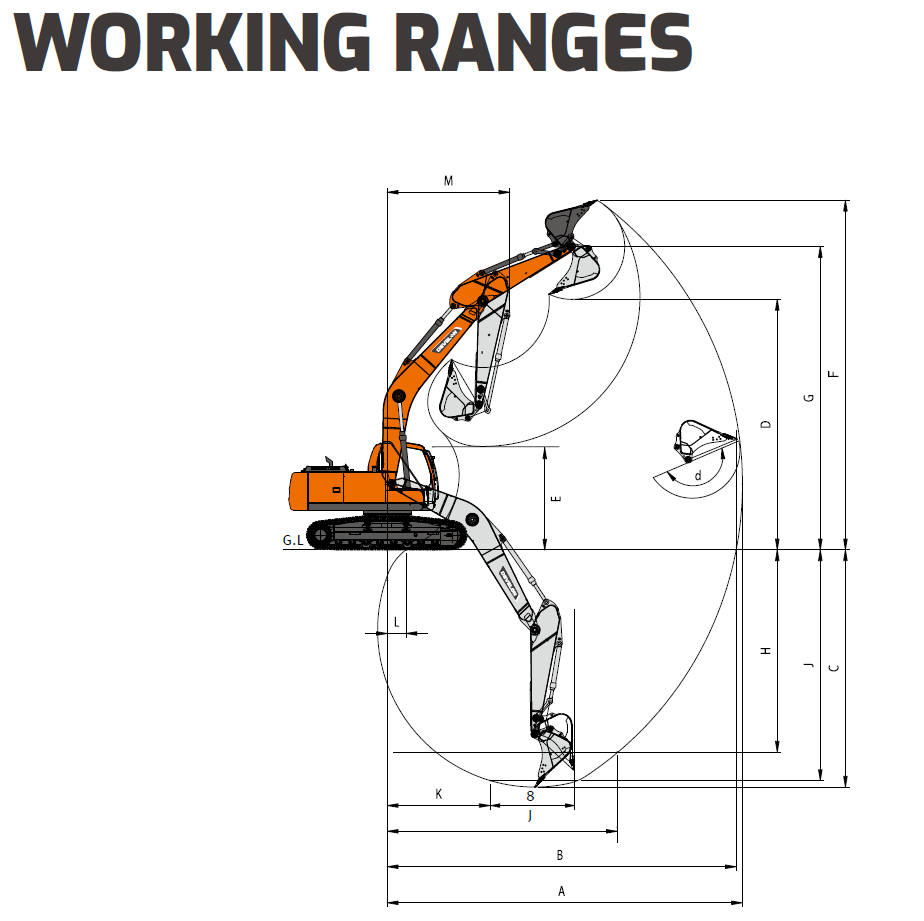

Working Ranges

A Max. digging reach mm 10,670
B Max. digging reach at ground level mm 10,475
C Max. digging depth mm 7,250
D Max. dumping height mm 7,325
E Min. dumping height mm 2,805
F Max. digging height mm 10,245
G Max. bucket pin height mm 8,880
H Max. vertical wall depth mm 3,940
I Max. radius vertical mm 8,830
J Max. digging depth(8’level) mm 7,050
K Min. radius 8’ line mm 2,990
L Min. digging reach mm 715
M Min. swing radius mm 4,040
D. Bucket angle (deg) ˚ 175˚

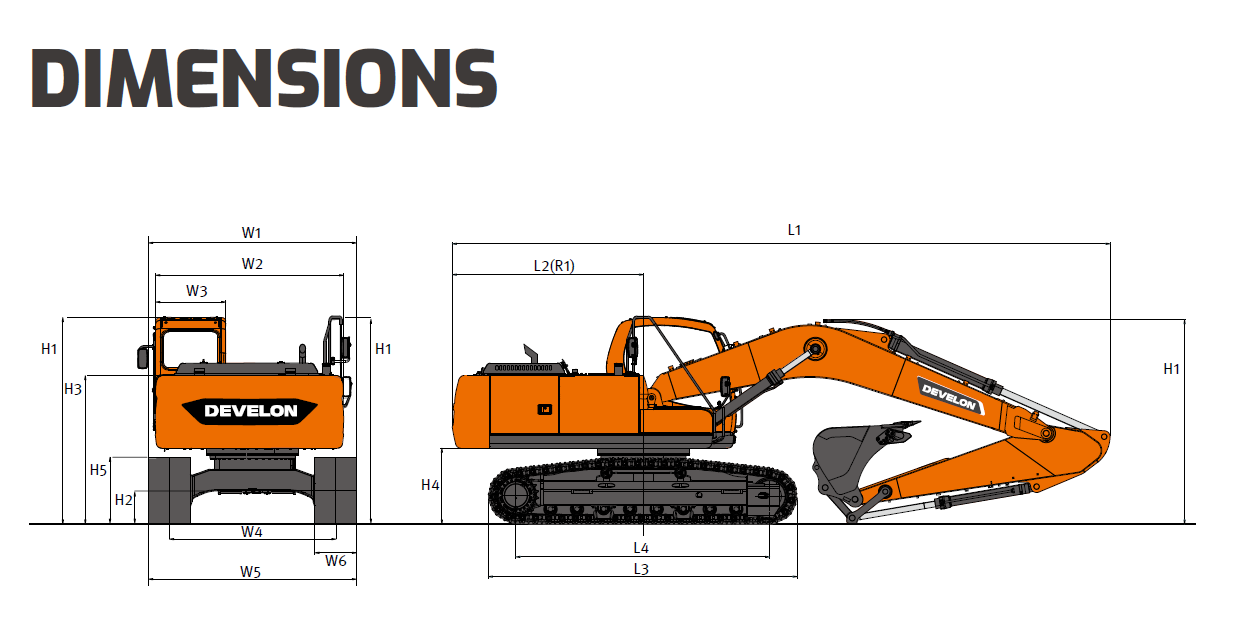

Dimensions

  Boom type mm 6,245
  Arm type mm 3,100
L1 Overall Length mm 10,610
H1 Overall Height mm 3,265
W1 Overall Width mm 3,200
L2/R1 Rear Swing Radius mm 3,230
H2 Ground Clearance mm 470
W2 House Width mm 2,960
W3 Cabin Width mm 1,010
H3 Height Over Cover mm 2,200
H4 Counterweight Clearance mm 1,120
H5 Track Height mm 970
L3 Track Length mm 4,950
L4 Tumbler Distance mm 4,040
W4 Track Gauge mm 2,600
W5 Undercarriage Width mm 3,200
W6 Shoe Width mm 600
