Model :DL420-7M
Engine :DEVELON DX12
Nominal flywheel power :218kw@2,000rpm(SAEJ1995)
Operating weight : 22,095KG
Add to inquiry
Engine :DEVELON DX12
Nominal flywheel power :218kw@2,000rpm(SAEJ1995)
Operating weight : 22,095KG
Technical Specification
| Category | Item | Unit |
|
| Engine | Model | |
DEVELON DX12 |
| |
Nominal flywheel power | HP/rpm | 218 kW@2,000 rpm(SAE J1995) |
| |
|
|
218 kW@2,000 rpm(SAE J1349) |
| |
Max torque | kgf.m/rpm | 1,200 rpm |
| Piston displacement | cc | 11,051 | |
|
Hydraulic System |
Main pumps maxflow | L/min | 280 |
| Drive | Travel speed | km/hr | 7.5 /12.6 /26.9 /38.8 (1/ 2 / 3 / 4) |
| Reverse | km/hr | 7.5 /12.6 /26.9 (1 / 2 / 3) | |
| Refill Capacities | Fuel tank | L | 318 |
| Oil tank | L | 223 |

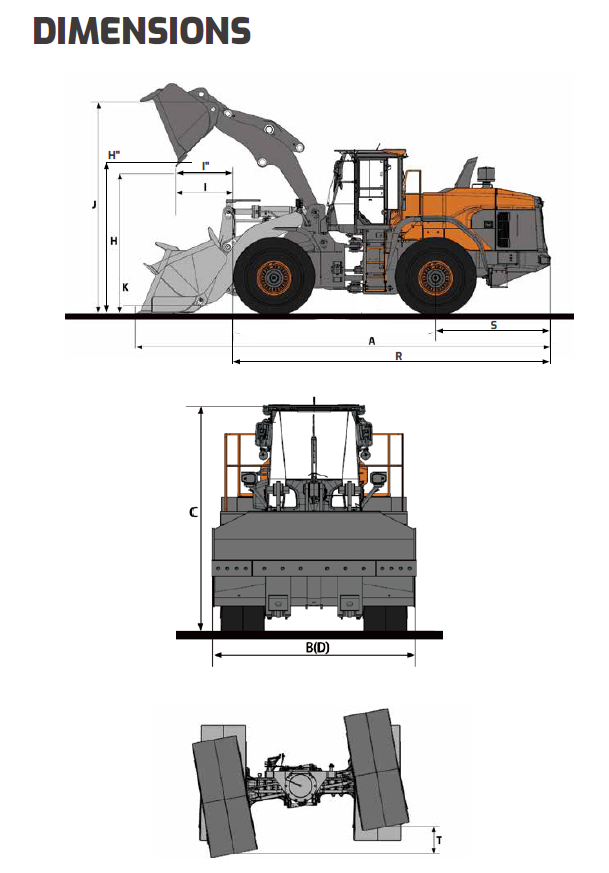

Dimensions
| A | Overall length | mm | 8,836 |
| B(D) | Bucket width | mm | 3,200 |
| C | Height Over Cabin | mm | 3,535 |
| H | Dump height (at 45˚) (at fully raised) | mm | 3,055 |
| I | Dump reach (at 45˚) (at fully raised) | mm | 1,260 |
| J | Height at bucket pivot point | mm | 4,265 |
| K | Max. tilt angle at carry position | 度 | 48 |
| R | Overall length without bucket | mm | 7,505 |
| S | Rear Axle to Counter weight | mm | 2,475 |
| T | Ground Clearance at 12° oscillation | mm | 480 |
