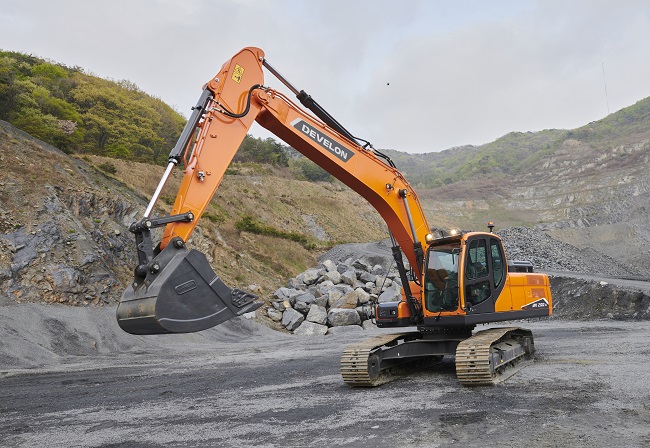

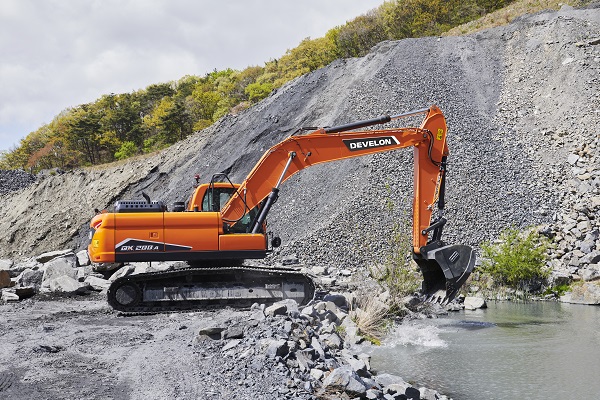

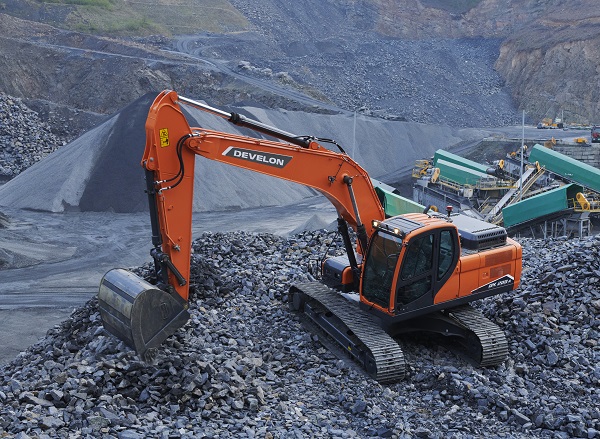

Model :DX200A-7M
Engine :DOOSAN DB58TIS
Nominal flywheel power :152HP@1,800rpm(SAEJ1995)
Operating weight :20,700 KG
Add to inquiry
Technical Specification
Category Item Unit



    Engine         Model
    		     DEVELON DB58TIS

    		     Nominal flywheel power         HP/rpm         152HP@1,800rpm(SAEJ1995)



    		     140HP@1,800rpm(SAEJ1349)

    		     Max torque         kgf.m/rpm         66/1,500rpm
              Piston displacement         cc         5785

    Hydraulic System

     Main pumps maxflow         L/min         2x222.3
    Drive         Swing speed         rpm         10.8

    		     Travel speed(fast/slow)         km/hr         5.9/3.2

    		     Maximum grade         ˚         35˚

    		     Maximum traction force         ton         22
    Refill Capacities         Fuel tank         L         400
     Oil tank L 196

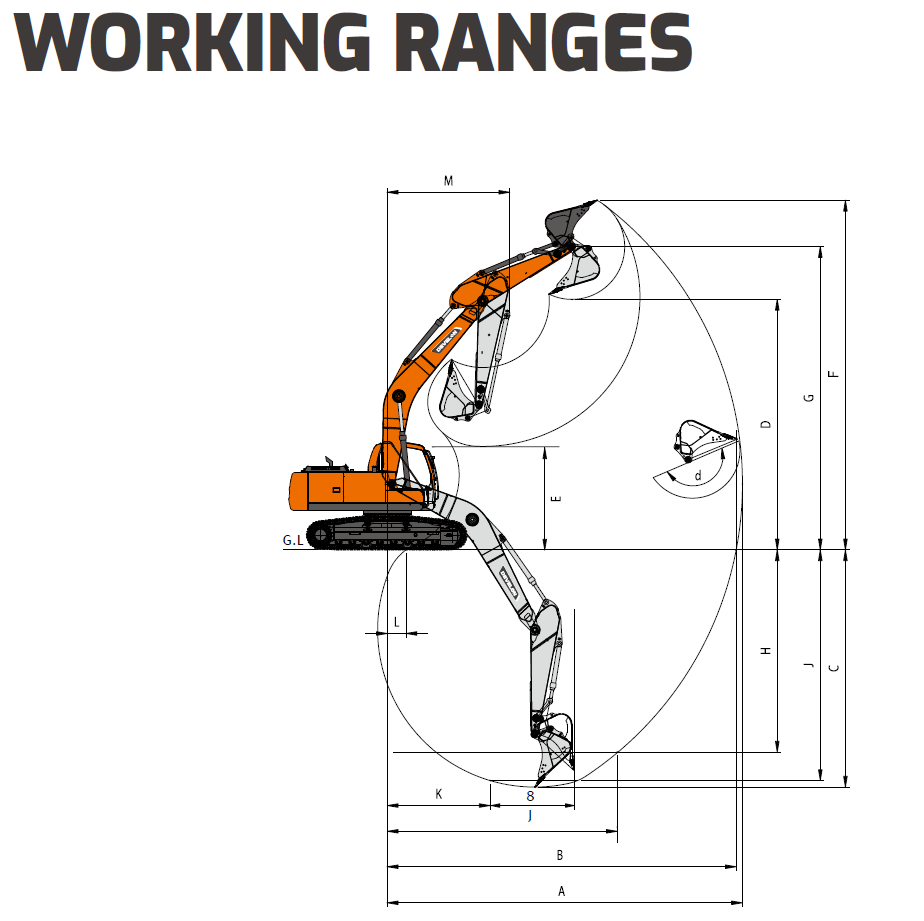

Working Ranges

A Max. digging reach mm 9,865
B Max. digging reach at ground level mm 9,695
C Max. digging depth mm 6,590
D Max. dumping height mm 6,830
E Min. dumping height mm 2,500
F Max. digging height mm 9,620
G Max. bucket pin height mm 8,270
H Max. vertical wall depth mm 5,525
I Max. radius vertical mm 6,415
J Max. digging depth(8’level) mm 6,395
K Min. radius 8’ line mm 2,820
L Min. digging reach mm 575
M Min. swing radius mm 3,560
D. Bucket angle (deg) ˚ 177˚

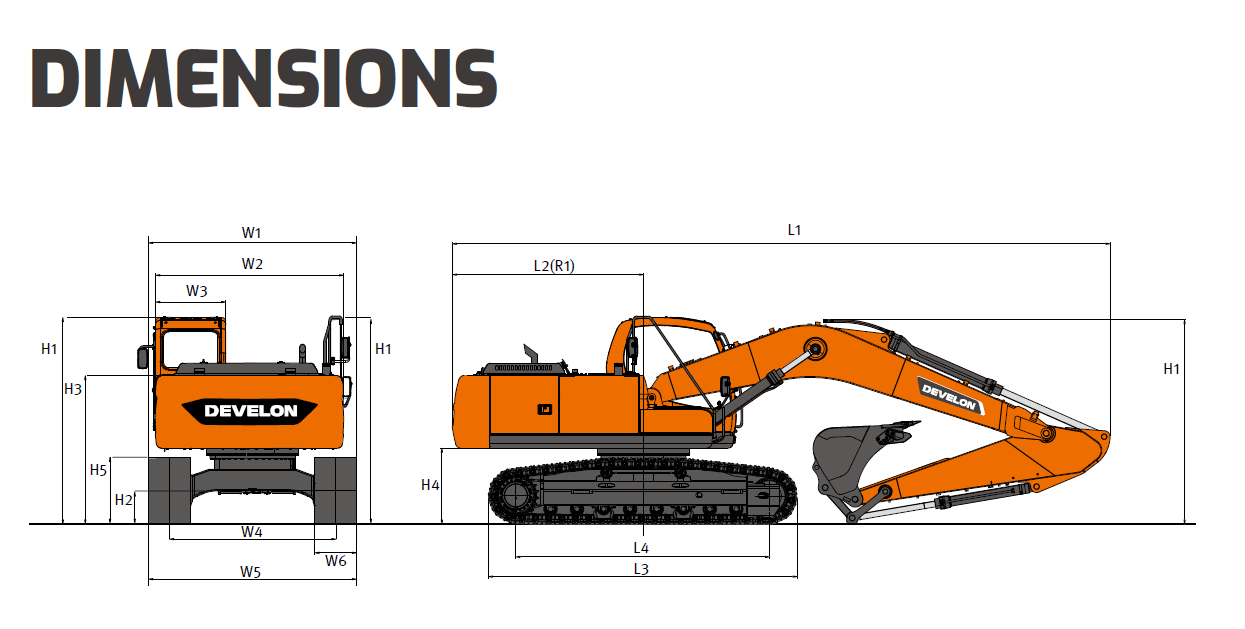

Dimensions


       		 Boom type        mm               5,700

       		 Arm type        mm               2,900
       L1        Overall Length        mm               9,570
       H1        Overall Height        mm               3,005
       W1        Overall Width        mm               2,990
       L2/R1        Rear Swing Radius        mm               2,909
       H2        Ground Clearance        mm               450.5
       W2        House Width        mm               2,710
       W3        Cabin Width        mm               1,010
       H3        Height Over Cover        mm               2,140
       H4        Counterweight Clearance        mm               1,066
       H5        Track Height        mm               883
       L3        Track Length        mm               4,065
       L4        Tumbler Distance        mm               3,270
       W4        Track Gauge        mm               2,200
       W5        Undercarriage Width        mm               2,800
       W6        Shoe Width        mm               600
